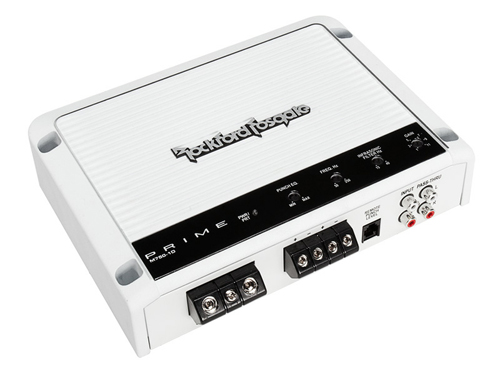

The Prime M750-1D amplifier is a 750 Watt mono high efficiency Class-D amplifier specifically designed for Marine and Powersport applications. The amplifier printed circuit board is conformal coated with a UV resistant finish that conforms to industry standard UV and Salt-Fog specifications, and the Class-D circuit topology is so efficient, it consumes much less current from your charging system over traditional Class-A/B amplifiers.





General Features:

  • UV resistant and Salt-fog marine protection
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA output to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • High-density split-dome convection heat-sink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable low-pass filter (50-500 Hz, 24 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-250 Hz
