jay posted on June 13, 2012 06:10

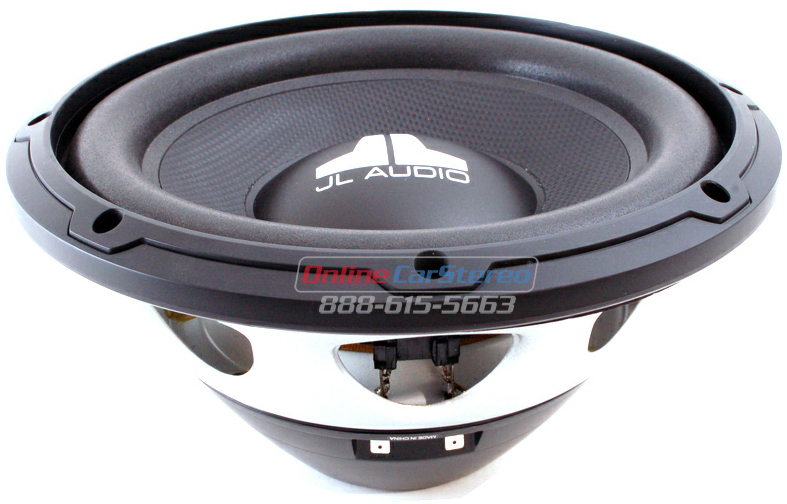

The 12WXv2 is an ideal subwoofer driver for lower power applications. It features excellent suspension linearity and a DMA-optimized motor system to keep distortion low. Our patented Elevated Frame Cooling design is also on-board for enhanced power handling and reliability.






The 10WXv2 is best used with amplifier power in the 75W - 200W range and is optimized to operate in a compact 1.375 cu. ft. (38.94 l) sealed enclosure, or a 1.75 cu. ft. (39.6 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

General Features:

  • Polypropylene woofer cone material
  • Foam woofer surround type
  • Proprietary dynamic motor analysis (DMA) improves motor behavior
  • Elevated frame cooling delivers cold air above the top plate to the voice coil
  • Resists breakdown under extreme conditions
  • Integrated foam rear gasket which provides an optimal seal
  • Great application flexibility with small or medium enclosures
  • Frequency response: 22-250 Hz
  • Sensitivity: 87.17 dB
  • Top Mount Depth: 5-5/16"
  • Cutout Diameter: 11-1/16"

Posted in: Car Audio , Subwoofers  Tags:
