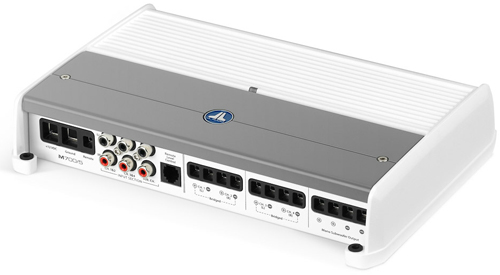

The M700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and it fits comfortably in just about any boat's weather-tight compartments. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 O), while also delivering a stout 300 W of power to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.





The M700/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an HD-RLC remote level control (sold separately), the amplifier's subwoofer channel level or overall level can be directly controlled from a remote location.



General Features:

  • Unregulated MOSFET switching type power supply
  • NexD Class D Technology reduces distortion and delivers superior efficiency
  • Fully variable 12dB/octave filters with filter frequency selection controls
  • Two stereo pairs (RCA-Type Jacks)
  • 5-channel operation
  • Speaker-level (high-level) inputs
  • Pass-Through preamp RCA outputs to daisy chain multiple amps
  • Advanced Rollback Protection circuitry for advanced thermal and low-impedance protection
  • Differential inputs reduce unwanted noise
  • Speaker output connections accept up to 8 AWG wire
  • +12V and Ground connections accept up to 4 AWG wire
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable High-Pass Filter (50-5000 Hz, 12 dB/octave)
  • Variable Low-Pass Filter (50-500 Hz, 12 dB/octave)
  • Signal-to-Noise Ratio (Main Channels): >104 dB
  • Frequency Response (Main Channels): 12-22,000 Hz
  • Frequency Response (Subwoofer Channels): 10-1000 Hz
  • Input Range: 100mV - 4V RMS
  • Damping Factor: >150 @ 4 ohm, >75 @ 2 ohm
  • THD (Total Harmonic Distortion): <1%
  • Dimensions: 10-1/4"L x 7-1/16"W x 2-1/16"H
