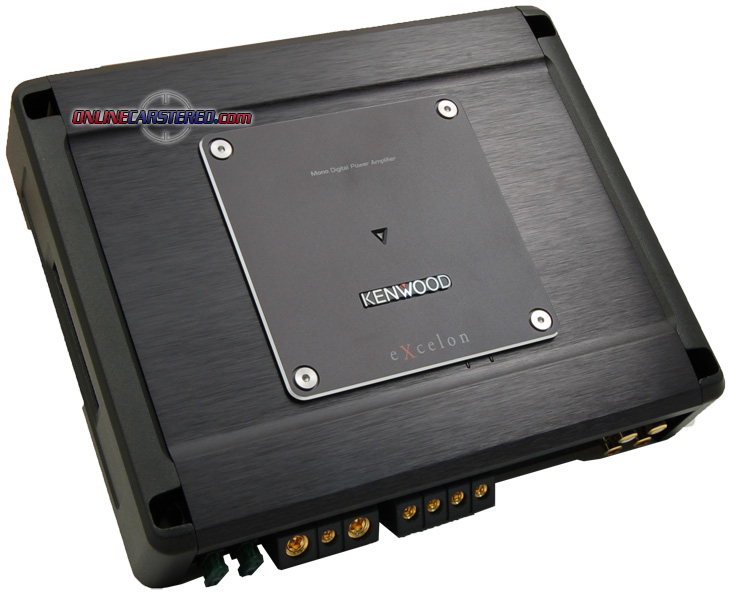

The eXcelon Reference Fit amplifiers will satisfy the discerning mobile audiophile with its simple design and unyielding power. These amplifiers are built to be easily installed in the tightest applications yet they provide the power required to pump out the sound you want to hear.
Dual Sigma Drive
This advanced negative feed back circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won’t stop moving once it’s in motion. This extra movement (sound) creates a type of distortion that’s not part of the original signal. The negative feedback circuit senses this unwanted movement and send out an opposite pulse to stop the speaker like an electronic brake.
- 600 Watts (RMS) x 1 @ 4ohms
- 700 Watts (RMS) x 1 @ 2 Ohms
- Dual Power Supply
- Dual Sigma Drive
- Variable Low Pass Filter: 50~200Hz -24dB/oct
- Variable Infrasonic Filter: 15~40Hz -24db/oct
- Bass Boost Remote Ready (KCA-WR10)
- Width: 9-1/4" (235mm)
- Height: 2-1/16" (52mm)
- Depth: 7-9/16" (192mm)
