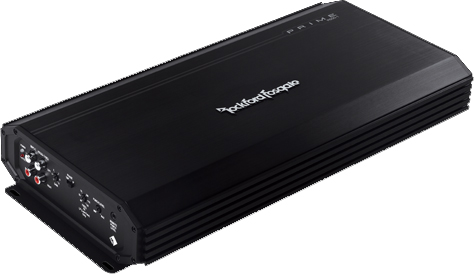

The PRIME R500-1 is a monstrous mono amplifier that can pump out a whopping 500 Watts into a 2-Ohm subwoofer load. The frequency response of the R500-1 allows it to be used exclusively with subwoofers.





Power Output

  • 320 Watts RMS x 1 @ 4-Ohms
  • 500 Watts RMS x 1 @ 2-Ohms
General Specifications
  • Efficiency (average): 67% @ 4-Ohm
  • 58% @ 2-Ohm
  • Low Pass (LP): 40Hz-130Hz @ 12dB/octave Butterworth
  • Tone Controls - Punch Bass: 0dB to +12dB @ 45Hz
  • Signal Input - Low Level: 1 RCA pair
  • Signal Output - Low Level: 1 RCA pair
  • Power Input Connector: Screw terminal barrier strip
  • Power Wire Gauge: 4 AWG
  • Speaker Output Connector: Screw terminal barrier strip
  • Speaker Wire Gauge: 8 AWG
  • Heat Sink Type: Extruded Aluminum
  • Cooling    Convection
  • Remote Controls: Punch Level Control (when connected, is linked to "gain control" to provide remote output level)
  • Visual Indicators: Power/Protect
  • Circuit Topology Class: Class A/B
  • Frequency Response: 20Hz to 250Hz +/-1dB
  • Dimensions (HxWxL): 2.40 x 7.67 x 16.65
