jay posted on September 30, 2011 05:41

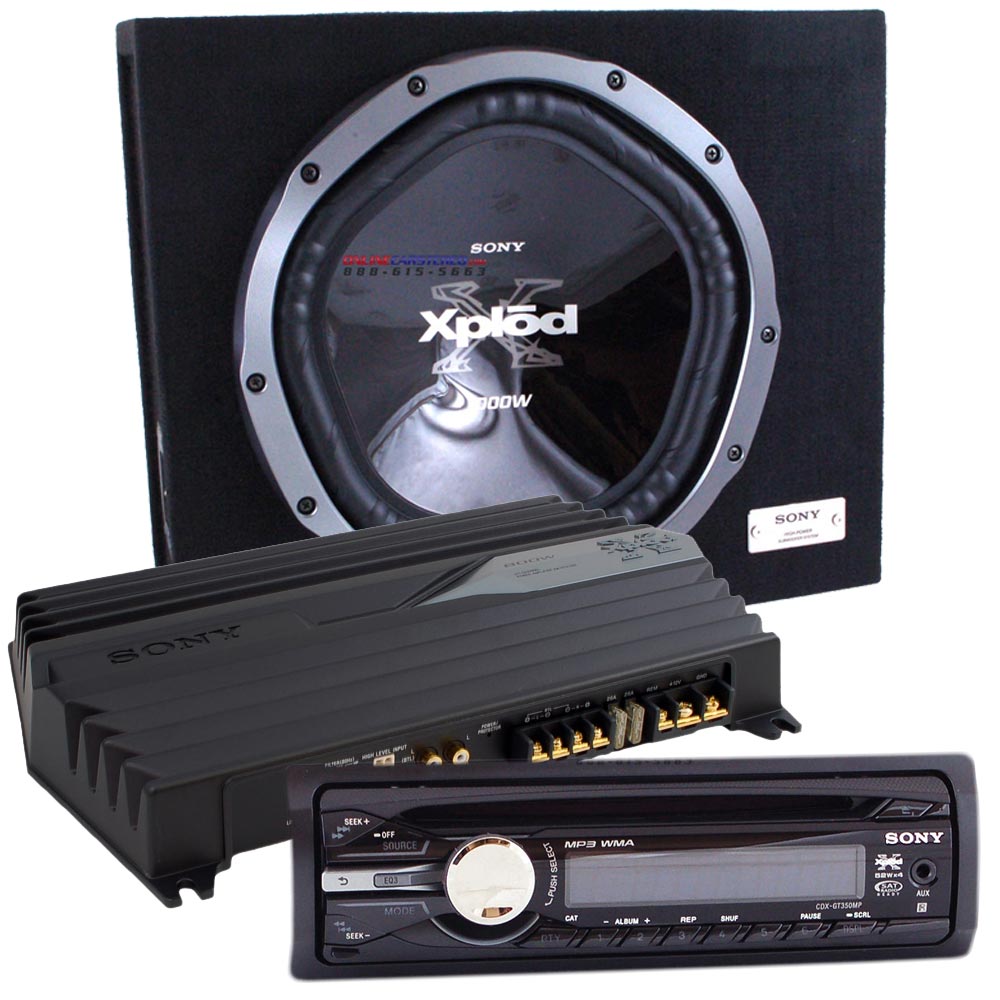

We've created a really sound pounding car audio package just for all you car audio enthusiast out there. This package comes includes a Sony CDX-GT350MP CD/MP3 Receiver, XM-GT1302 280W A/B Class amplifier, XS-GTX121LS 1000W shallow mount sub enclosure loaded with a 12" XS-GTX120L subwoofer.





Sony CDX-GT350MP

In-Dash CD/MP3/AM/FM Receiver with Built-In RDS, Front Aux Input, and Wireless Remote

General Features:

  • CD Text Display : CD/MP3/WMA data displayed
  • Dimmer Adjust : Slectable on/off
  • Key Illumination : Blue
  • On-Screen Clock : 12H
  • Band : AM / FM
  • Digital-to-Analog Converter : 24 bit
  • Format(s) Supported : CD, CD-R / CD-RW (MP3/WMA files)1
  • Frequency Response : CD: 10-20,000 Hz
  • Preout Impedance : 220 ohms
  • Preout Voltage : 2 volt
  • S/N Ratio : Audio Power: CEA2006 S/N 80 dBA
  • Signal-to-Noise Ratio (dB) : CD: 120 dB
  • Station Preset(s) : 18 FM / 12 AM
  • Tone Control(s) : EQ3: 3 band EQ
  • Low +/- 10 dB at 60 Hz
  • Mid +/- 10 dB at 1 kHz
  • High +/- 10dB at 10 kHz
  • Tuner Frequency Range :
  • FM:Tuner Frequency Range(MHz): 87.5-107.9
  • AM:Tuner Frequency Range(kHz): 530-1710
  • Tuner Type : SSIR-EXA with RDS
  • Wow and Flutter : Below measurable limit
  • 12V Trigger Output(s) :
  • Power antenna
  • Amplifier turn on
  • Antenna Terminal(s) : AM/FM Antenna Input Terminal
  • Audio In :
  • Front Aux input with variable level: -8dB ~ +18dB
  • Rear Sony Bus audio / controll terminal
  • Infrared Port : Wireless remote
  • RCA Audio Output(s) : Front and Rear/Sub selectable RCA pre-amp outputs
  • Remote Jack : Optional wired remote input terminal


Sony XM-GTX1302

280W A/B Class 2-Channel GTX Series Car Stereo Amplifier

Power Output:

  • 130W RMS x 2 @ 4 Ohms
  • 170W RMS x 2 @ 2 Ohms
  • 340W RMS x 1 [Bridged] @ 4 Ohms

General Features:

  • Current Drain: At rated output: 30A (at 4 Ohms) Remote Input: 1 mA
  • Input Voltage: 10.5-16V Power Supply Voltage
  • Internal Power Supply: OTL Output Transformerless Circuit Pulse Power Supply
  • Output Power: Maximum Output: 280 Watts x2 or 800 Watts x1 (at 4 Ohms)
  • Power Requirements: 12V DC Car Battery (Negative Ground)
  • Audio In: RCA Pin Jacks, High Level Input Connector
  • Audio Out: Speaker terminals with screws
  • RCA Audio Input(s): Pin Jacks: 0.3 - 6V
  • Dimensions (Approx.): 15 1/8" x 2 1/4" x 10"
  • Weight (Approx.): 6 lbs. 10 oz.


Sony XS-GTX121LS

Shallow Mount (Truck) Enclosure Loaded with Single 12-Inch XS-GTX120L Subwoofer at 4-Ohms Final Impedance

Power Handling:

  • 300W RMS
  • 1000W RMS

Sub Features:

  • Polypropylene cone woofer
  • Stroke stabilizer rubber surround
  • 5-Sided cone with a dust cap-less design
  • Large ferrite magnet
  • Frequency response: 30-1,000 Hz
  • Sensitivity: 86 dB

Box Features:

  • 12" Sealed Truck Enclosure
  • Gold plated binding posts for optimal signal transfer
  • Made from durable 3/4" MDF
  • Covered in black carpet for a long lasting box that looks great
  • Dimensions: 7-5/8"BD x 17-5/8"W x 14-3/8"H
