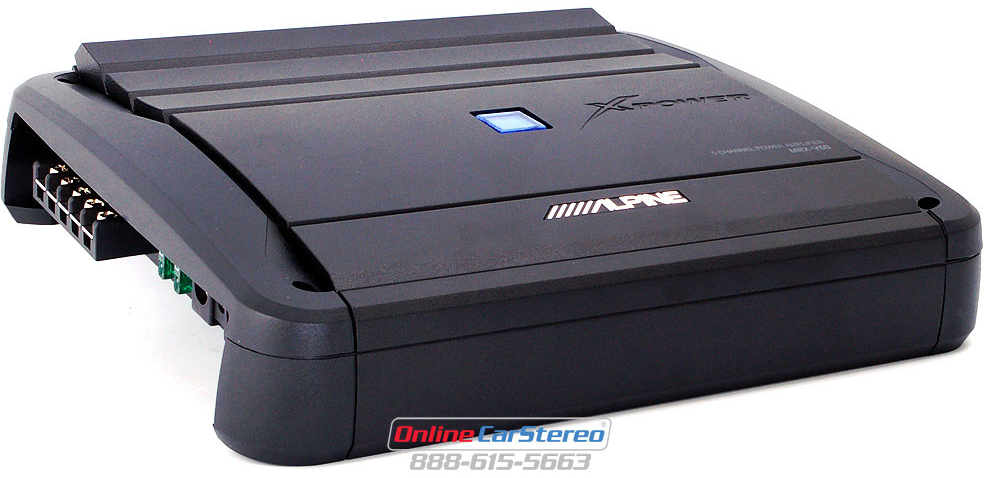

Check out the MRX-V60 5-Channel Class-D MRX Series Power Amplifier from Alpine that lets you use the latest amp technology to play our music loud and clean without taking up my space. This super-compact amp employ some of the same circuitry developed for Alpine's top-of-the-line PDX digital amps, so they'll bring exceptional sound to almost any ride. If you have 4 speakers, no problem, the MRX-V60 can handle them all with the 4-channel section puts out 5 watts RMS to each of your full-range speakers. The MRX-V60 also features a fifth channel that'll pump out up to 300 watts RMS to your subwoofer. You can use the low-pass and subsonic filters to adjust the character of your bass, while a bass boost helps to fatten up the sound if needed.





General Description:

  • Amplifier Type: Class-D (Digital)
  • Channel Design: 4 Channel + Subwoofer
  • Thermal Control: Thermal Management Control
  • Power Supply:MOSFET
  • Power Supply Design: DC-DC PWM Power Supply
  • Board Circuitry: S.T.A.R. Circuitry
  • Current Protection: Over-Current, Over-Voltage and Thermal Protection
  • Power Indicator: Top Mounted Blue LED Power Indicator
  • Speaker-Level Inputs: Speaker Level Inputs
  • Crossover: Variable Lowpass & Hiighpass Filter
  • Final Outputs: Direct FET
  • Board Design: 6-layer Glass Epoxy PC Board
  • Gain Control: Continuously Adjustable Gain Control
  • Bass Control: Remote Bass Control (Sold separately)
  • Power Requirements: 14.4V DC (11V to 16V)
  • Input Sensitivity (RCA Input): 0.2 - 4.0V
  • Input Sensitivity (Speaker Level Input): 0.5 - 10V
  • Frequency Response (+0, -3dB: 1W into 4 Ohms) for CH-1/2/3/4: 5 -45Hz
  • Frequency Response (+0, -3dB: 1W into 4 Ohms) for Subwoofer: 5 -400Hz
  • Frequency Response (+0, -1dB: 1W into 4 Ohms) for CH-1/2/3/4: 7 -30Hz
  • Frequency Response (+0, -1dB: 1W into 4 Ohms) for Subwoofer: 10 -300Hz
  • THD+N (10W into 4 Ohms) for CH-1/2/3/4: 0.02%
  • THD+N (10W into 4 Ohms) for Subwoofer: 0.008%
  • THD+N (Rated Power into 4 Ohms) for CH-1/2/3/4: 0.07%
  • THD+N (Rated Power into 4 Ohms) for Subwoofer: 0.04%
  • Damping Factor for CH-1/2/3/4: iz500
  • Damping Factor for Subwoofer: iz1000
  • Signal to Noise (Rated Power into 4 Ohms) for CH-1/2/3/4: 104dB
  • Signal to Noise (Rated Power into 4 Ohms) for Subwoofer: 110dB
  • Remote Level: 0 to -20dB (RUX-KNOB Required)
  • Dimensions: 10-5/8''W x 2-1/4''H x 9''D
