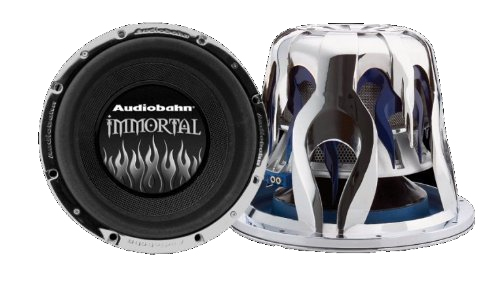

Designed specifically for competition, Audiobahn introduces the IMMORTAL SERIES Subwoofer. Featuring Quad 2 Ohm Voice Coils can handle up to 2250 watts of continuous power. Feature elements like the 200 oz. triple stacked Strontium magnets, proprietary tall excursion foam surrounds, and 25mm top plates, all ensuring maximum cone excursion and subwoofer efficiency. The Audiobahn IMMORTAL SERIES subwoofers packages these advanced qualities into an ultradurable, cosmetically-appealing, chromed 3-dimensional die cast aluminum basket.





General Features:

  • Proprietary Tall Excursion foam surround: allows for maximum excursion 14/15 and maximum cone surface area
  • Ultra light 2-layer Carbon Fiber, Kevlar Cone with aluminum dust cap
  • Triple Stack Magnet
  • Chrome plated 3-dimensional cast Aluminum Basket
  • 25mm Top Plate for Increased Efficiency
  • 2 Ohm voice coil wound on black anodized aluminum former

AWIS12J Specifications:

  • 2000W RMS
  • Size: 12"
  • Magnet Weight: 200oz.
  • Frequency Response: 23Hz - 700Hz
  • Efficiency: 95dB
  • Voice Coil: 3" Quad 2 Ohm
  • Operation: 0.5, 2 or 8 Ohm
  • Mounting: 8-5/8"
  • Hole Cut-Out: 10-7/8"
  • Outer Diameter: 12-1/4"

AWIS15J Specifications:

  • 2250W RMS
  • Size: 15"
  • Magnet Weight: 200oz.
  • Frequency Response: 20Hz - 700Hz
  • Efficiency: 97dB
  • Voice Coil: 3" Quad 2 Ohm
  • Operation: 0.5, 2 or 8 Ohm
  • Mounting: 9-5/8"
  • Hole Cut-Out: 13-3/4"
  • Outer Diameter: 15-1/4"


Posted in: Car Audio , Subwoofers  Tags:
