jay posted on November 9, 2010 05:40

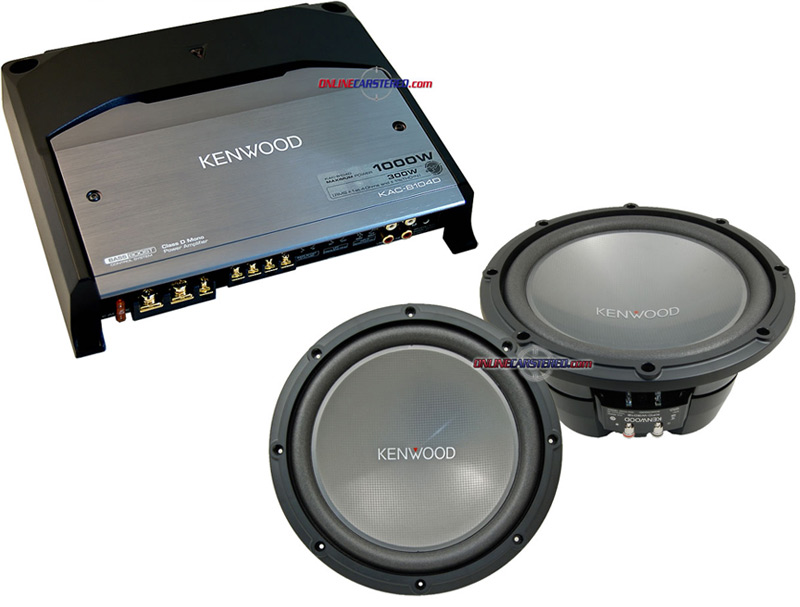

If it's your first venture into the car audio scene and find yourself wondering where to start, then we have a great deal on an entry level bass package that will get you up and running in no time. This bundle includes the KAC-8104D Mono amplifier and two KFC-W2512 car subwoofers. The amplifier gives you a max power of 1000W and features aluminum die cast heat sink to keep your amp cool and running without a hitch. The woofers are 10" with 4-Ohm voice coil with urethane surround, dual magnet drive, and has a cool cosmetic look to the speaker grills as well.





KAC-8104D Mono Subwoofer Amplifier:

  • Mono subwoofer amplifier
  • 300W x 1 at 4ohms (20-200Hz 0.5%THD)
  • 500W x 1 at 2ohms (100Hz 0.8% THD)
  • CEA-2006 compliant
  • Bass Boost f=40Hz Gain 0 - 18dB
  • Class D Amplifier Circuit
  • Aluminum Die Cast Heat Sink
  • Power MOS-FET Switching Power Supply
  • Speaker Level Input and outputs
  • Signal Sensing Turn-On
  • 2ohm Load Capability
  • Line Output Terminals (RCA) for Extension
  • Blue Illumination
  • Gold Plated Power & Speaker Terminal
  • Built-in Variable Low-pass Filter 50-200Hz (24dB/oct)
  • Built-in Infrasonic Filter 15/25Hz (18dB/oct)
  • Fuse rating: 40A x 1
  • 8-gauge power and ground leads recommended - wiring and hardware not included with amplifier
  • 11-1/16"W x 2-3/8"H x 9-7/8"D
KFC-W2512 Subwoofer General Features:
  • 10" Woofer with 4-ohm voice coil
  • Urethane Surround
  • Dragon Spider Design
  • 2-Layer Voice Coil Design
  • Dual Magnet Drive
  • 8AWG Wire Capable Push Terminals
  • Frequency Response: 37-300 Hz
  • Sensitivity: 83 dB
  • Mounting depth: 5-5/16"
  • Impedance: 4 Ohms
  • Sensitivity: 83dB
  • Free-Air Resonance: 44Hz
  • Frequency Response: 37Hz – 300Hz



Posted in: Amplifiers , Subwoofers  Tags:
