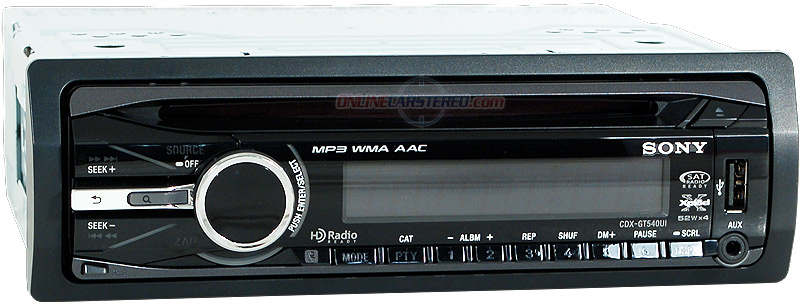

The CDX-GT540UI In-Dash CD/MP3 Receiver from Sony features a white dot-matrix CD text display for clear viewing of music track text with MP3 ID3 Tag Display showing Title, Artist, and Album. Compatible playback of CD/CDR/CDRW and digital MP3 and WMA formats as well. This unit also has a tuner with 18FM/12AM presets, a Radio Data System (RDS) that displays radio broadcast information such as artist, title, and album.

Of course with Sony receivers come standard with QuickBrowZer that lets you search and select songs by category, Jump Mode that lets you fast forward through a music category in 10% increments, and Zappin feature that plays music in 6, 9, or 30 second clips until you find what your looking for. The CDX-GT540UI also has options for expandability which include 2 sets of 2V preamp outputs, front, rear/subwoofer, Sirius or XM Satellite Radio ready for uninterupted commercial free music, talk, sports, and news channels.





Features:

  • CD Text Display : CD and MP3 / WMA data displayed
  • Disc Capacity : 1
  • Illumination : Blue
  • On-Screen Clock : 12H
  • CD : CD, CD-R / CD-RW (MP3 / WMAfiles)
  • 12V Trigger Output(s) : Power antenna Amplifier turn on
  • Antenna Terminal(s) : Aerial Input Terminal
  • Audio In : Front Aux input with variable level: -8dB ~ +18dB Front USB input Sony Bus audio/controll terminal
  • Digital Audio Input(s) : -Ability to use all forms of USB devices may vary as not all devices are compatible. This unit can be connected to the following iPods. Update your iPod to the latest software before you use it. -iPod Nano 1st generation* -iPod Nano 2nd generation (aluminum) -iPod Nano 3rd generation (video) -iPod 5th generation (video)* -iPod Classic -iPod Touch -iPhone When you connect iPod Nano1st generation or iPod 5th generation, Passenger Control is not available. -This unit is compliant with MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices compliant with the USB standard. -This unit cannot recognize USB devices via a USB hub. If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.
  • Infrared Port : Wireless remote
  • RCA Audio Output(s) : Front and Rear/Sub selectable RCA pre-amp outputs
  • Tilt Range : 45°
  • Current Drain : 3 - 5 amps
  • Input Voltage : 12 V DC car battery (negative ground)
  • Output Power : 52W x4 High Power - 17 watts per channel minimum continuous average power into 4 Ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5% total harmonic distortion.
  • Power Consumption (in Operation) : 45w
  • Color : Gun Metallic / Black
  • Remote Jack : Optional wired remote terminal
  • USB Port(s) : Front USB - Full Speed
  • Max power output : 52 watts x 4 at 4 ohms
  • Speaker Impedance : 4-8 Ohms
  • Band : AM / FM
  • CD Playback : CD, CD-R / CD-RW (MP3/WMAfiles)
  • Digital-to-Analog Converter : 24bit
  • Frequency Response : CD: 10-20,000 Hz
  • Preout Impedance : 220 ohms
  • Preout Voltage : 2 volt
  • Signal-to-Noise Ratio (dB) : CD: 120 dB
  • Station Preset(s) : 18 FM / 12 AM
  • Tone Control(s) : Low +/- 10 dB at 60 Hz Mid +/- 10 dB at 1 kHz High +/- 10dB at 10 kHz
  • Tuner Frequency Range : FM:Tuner Frequency Range(MHz): 87.5-107.9, AM:Tuner Frequency Range(kHz): 530-1710
  • Tuner Type : SSIR-EXA with RDS
  • Volume Control : Tel/Nav Attenuation Circuitry
  • Wow and Flutter : Below measurable limit
  • FM Usable Sensitivity : 10 dBf
  • Frequency Response : FM: 20-15,000 Hz
  • S/N Ratio : 70 dB (mono)
  • Selectivity : 75 dB at 400 kHz
  • Stereo Separation : 40 dB at 1 KHz
  • Dimensions (Approx.) : 178 x 50 x 179mm
  • Weight (Approx.) : 1.3Kg
