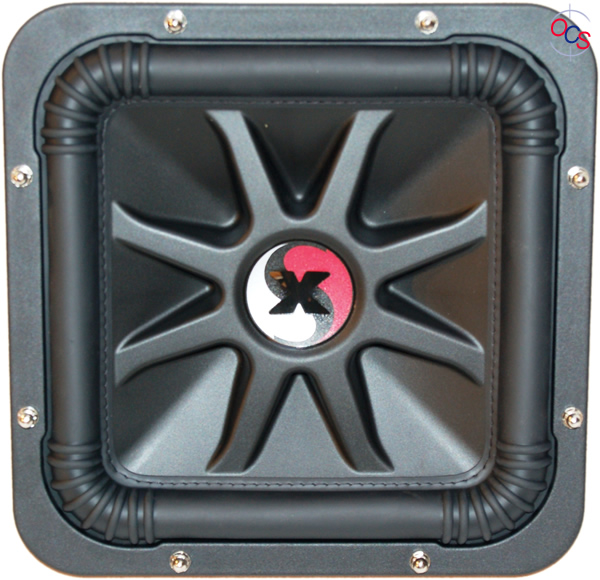

Since its debut in 2003, Kicker engineers have spent much time tweaking and fine-tuning the new Kicker SoloX Series Subwoofers. The patented square subwoofer is available in 10 S10X, 12 , S12X and an S18X 18 inches (in Dual 2 or 4 Ohms) with most older features as well as some new engeneere. Aside from the regular heat dissipation they've also provided ARCTIC (Aluminum Rapid Cooling Therman Induction Centering) Cap. Also, for a complete system flexibility the SoloX Series also comes with Dual 2 Ohm or Dual 4 Ohm Voice Coils.
General Features:
- Titanium Deposit Impregnated Cone - An Ultra High Performance look that is more rigid for less cone flex and less distortion.
- Advanced Cone Technology - The outer edge of the cone has been rolled to increase cone rigidity to decrease cone flex under high excursion.
- BAM (Basket And Motor) Assembly - Cast Aluminum Basket featuring low profile/open design. Provides a solid anti-resonant foundation for the massive motor assembly.
- SPAIR (Simple Pull Apart Insertable Replacement) - A stamped steel removable cone assembly. (Patent Pending)
- Uniplate V.2 with Vented Hyper-Extended Pole (Patent Pending)
- Utilizes "X" Vent technology to insure proper dissipation of heat away from the voice coil during operation.
- Provides enhanced heat transfer for cool operation and maximum power handling.
- Increases the linear magnetic fields around the voice coil gap for superior cone motion control.
- Releases pressure under ISD for freer cone motion and enhanced low bass.
- SLAM (SPAIR Lockdown Attachment Mechanism) - The aluminum frame attached to the SPAIR which properly secures the removable speaker assembly (SPAIR) to the BAM (Basket And Motor assembly).
- SPLAT (Speaker Precise Location Alignment Tool) - Locates and anchors the BAM to the baffle of your enclosure.
- Locator Pin / Locator Hole - The pin in the BAM along with the hole in the SPAIR allows the SPAIR to fit only one way into the BAM and is necessary to insure proper performance.
- ARCTIC Cap (Aluminum Rapid Cooling Thermal Induction Centering Cap) - Mounted on top of the extended pole--piece it is responsible for insuring the voice coil on the SPAIR is properly centered when inserted into the BAM, adds more mass for increased thermal transfer from the voice coil to the pole piece and channels air into the "X" Vent for increased cooling.
- S3 Triple Spider Array - 3 Poly nomex spiders keeps the voice coil properly centered under high excursion.
- Double Stack Custom Tooled Magnets - With a BAM this big, a single just wouldn’t fill your appetite.
- ISD (Inverted Structural Dome™) - Further increases cone's resistance to flex under pressure.
- Stitched Surround - Prevents cone/surround separation at high excursions.
- Dual Ultra-Length Voice Coils - For high excursion and flexible wiring options.
- Oversized 3" Voice Coil - With bottom rolled out for increased retention capabilities.
- Strain Relief Boots for Tinsel Lead Wires - Large heavy gauge tinsel lead wire with strain relief boots.
- Spring Loaded Binding Post - Quick, easy and secure method for connecting the speaker wires to the driver.
Available SoloX Series Models:
Kicker SoloX S12X2
- Sensitivity: 87.7 dB
- RMS Power Range : 2500 Watts
- Peak Power Handling: 5000 Watts
- Impedance: Dual 2 Ohm
- Low Frequency response: 20 Hz
- High Frequency Response: 100 Hz
- Diameter: 12 Inch
Kicker SoloX S12X4
- Sensitivity: 88 dB
- RMS Power Range : 2500 Watts
- Peak Power Handling: 5000 Watts
- Impedance: Dual 4 Ohm
- Low Frequency response: 20 Hz
- High Frequency Response: 100 Hz
- Diameter: 12 Inch
Kicker SoloX S18X1
- Sensitivity: 89.7 dB
- RMS Power Range : 5000 Watts
- Peak Power Handling: 10000 Watts
- Impedance: Dual 1 Ohm
- Low Frequency response: 18 Hz
- High Frequency Response: 100 Hz
- Diameter: 18 Inch
Kicker SoloX S18X2
- Sensitivity: 89.7 dB
- RMS Power Range : 5000 Watts
- Peak Power Handling: 10000 Watts
- Impedance: Dual 2 Ohm
- Low Frequency response: 18 Hz
- High Frequency Response: 100 Hz
- Diameter: 18 Inch
Kicker SoloX S18X4
- Sensitivity: 89.7 dB
- RMS Power Range : 5000 Watts
- Peak Power Handling: 10000 Watts
- Impedance: Dual 4 Ohm
- Low Frequency response: 18 Hz
- High Frequency Response: 100 Hz
- Diameter: 18 Inch
