Pioneer GM-D7500M MonoBlock Class D Car Subwoofer Amplifier

Small size, big power, Pioneer's new GM-D7500M car subwoofer delivers!

The all new GM Digital Series from Pioneer are high-efficiency Class-D amplifiers with improved electrical and thermal efficiencies that allows them to produce the same power output as other amplifiers of bigger size. These are available in 4-Channel and Monoblock configurations. Featured here is the GM-D7500M monoblock which has a small footprint size that enables it to fit in more areas of your vehicle without having to sacrifice any of its power. Even with its small size the GM-D7500M delivers 800W of power.

Other features include a selectable 50Hz Bass Boost, a built-in crossover, pulse width modulator, aluminum die-cast heat sinks, a hairline silver aluminum top plate for maximum heat dissipation, and many more.

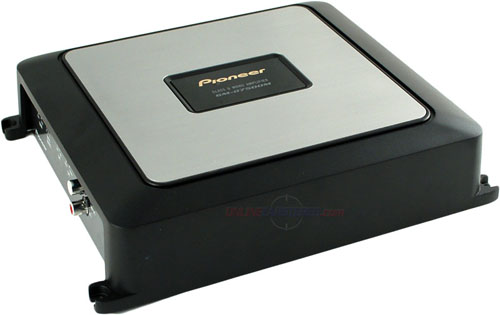

 Pioneer GM-D7500M 800W MonoBlock Class D Car Subwoofer Amplifier

General Features:

  • 200W x 1 @ 4 Ohms
  • 400W x 1 @ 2 Ohms
  • GM-D7500M Car Subwoofer Amplifier General Features
  • Class-D Design
  • MOSFET Output Section
  • Compression-Type Speaker Terminals
  • Balanced Isolator Input Circuit
  • 2 Channel RCA Inputs
  • Speaker Level Input
  • Input Level Control: Hi-Volt (200mV ~ 6.5v)
  • Built-in Crossover with Variable LPF
  • Crossover Frequency Range: 40~240Hz, -12dB/Oct.
  • Bass Level ControlL 50Hz, 0/6/9/12dB
Technical Specs:
  • RMS Power Range : 200-400 Watts
  • Number Of Channels: 1
  • Maximum Power: 800 Watts
  • Frequency response: 40-240 Hz
  • Built In Crossovers: Yes
Get the Pioneer GM-D7500M 800W MonoBlock Class D Car Subwoofer Amplifier
