ocsblogger posted on June 13, 2014 08:40

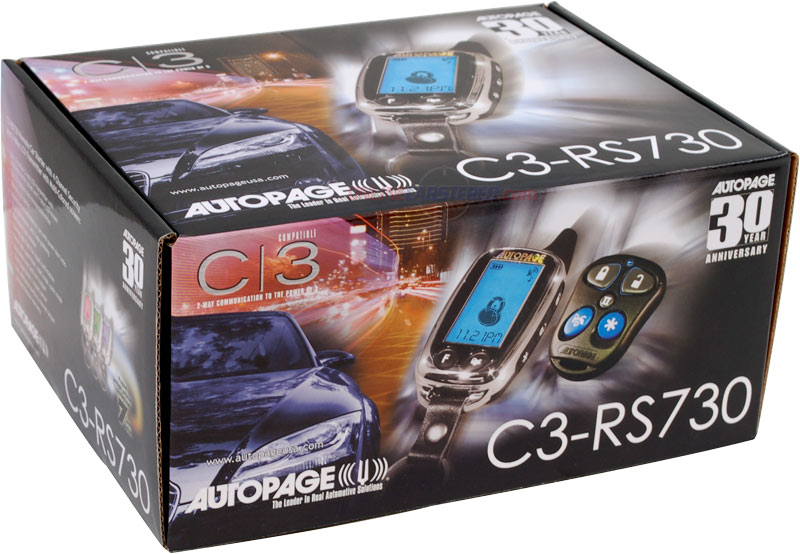

AutoPage packs in everything that you'll need for a car starter, introducing the C3-RS730, it is a 4-Channel alarm with remote car starter and two way AM/AM paging LCD remote transmitter. This package includes a 2-Way LCD Remote with 3 color screen displays, two-car operational, 5 button configuration and more. The alarm features 4-Channel outputs, function buttons on the LCD, back-up memory system, and a hefty amount of programmable features.





Included Components

  • C/3 Compatible for Telematic Cell Phone Interface.
  • 4 Channel Alarm and Remote Car Starter with 5 on-board relays for parking lights, starter, accessories, ignition 1&2 and one additional relay / socket for starter disable.
  • High-Tech chrome metal finish with smart-looking leather strap for the key ring.
  • LCD screen with 50% more viewing space includes new 7-color selectable backlighting.
  • Two-way paging transceiver with 7-color LCD screen uses AM frequency bands for transmitting and receiving at 433.9 megahertz. Unit also includes 24-hour clock with meter minder and temperature indicator and countdown run timer.
  • Design Two-way, window mount super extended range helical transceiver antenna module.
  • EMS-1 mini-size Dual Stage shock sensor
  • Two-way, window mount extended range helical transceiver antenna module.
  • Dual Stage shock sensor
  • On-board Serial Port for i-Data Link Data Bus and Bypass module integration.
  • 5-button XT-33 standard 433.9 Mhz remote transmitter.
  • Programmable outputs, plus new starter and ignition timing sequence for improved compatibility with new 2007 vehicles (specifically GM).
  • On-board temperature sensor for identifying in-cabin temperature from the LCD remote.
  • On-board 30/40 ampere micro relays that contribute to 50% reduction in main unit size to fit smaller and tight spaces under the dash of newer cars
2-Way LCD Remote Features:
  • 5-button configuration with selectable Button Lock to prevent accidental mis-use.
  • Uses one AAA type 1.5volt alkaline battery with battery life indicator and power save mode
  • 3-color LCD screen displays 29 icons and figures that provide for around-the-clock visual confirmation on vehicle and alarm status. Back lighting for nighttime use.
  • Transmits on AM band and receives on AM band.
  • Two-car Operational
  • 24-hour digital clock with count down timer for parking meter reminder. The clock doubles as a temperature indicator for monitoring in-car temperature.
  • Multiple audible confirmation tones as well as vibrator mode for paging.
Alarm Features:
  • 4 Channels of outputs (3 dedicated to lock/unlock, trunk and remote start / 1 auxiliary output)
  • Dedicated function buttons on LCD remote and 5-button standard mini-remote transmitter.
  • New Turbo Timer and window Comfort Feature .
  • Code learning / Anti-scan receiver with programmable code hopping.
  • Back-up memory system
  • Dedicated remote panic and car locator
  • Passive arming by-pass from the remote
  • Parking light flash with dual polarity relay on-board
  • Starter disable output with relay and socket included
  • Dome light illuminated entry output
  • Dual polarity (+/-) door lock outputs with optional driver s door priority two step unlock
  • Additional positive and negative inputs
  • 500 mA grounded outputs for starter disable and door lock/unlock
  • Programmable momentary, latched or timer on auxiliary channel.
  • Programmable manual / passive arming with true last door arming with auto re-arm on
  • Programmable Single / Double Pulse Unlock
  • Programmable Parking lights (flash or constant)
  • Programmable Pathway Illumination (on / off)
  • Programmable voltage sense for delayed dome lights (on / off)
  • Programmable horn and siren chirp delete
  • Programmable ignition control lock and unlock
  • Programmable pulse time for lock and unlock (.9 sec. / 3 sec.)
Remote Starter Features:
  • 3rd Ignition (-) output
  • Ground when start (-) output
  • Selectable one or two push Safety Start
  • Programmable gasoline or diesel with 10, 15, or 20 second Wait-to-Start
  • Hood pin switch safety input (pin switch included)
  • Selectable RPM / Voltage Start
  • RPM / Voltage / Hi-Low level check
  • Timer control start option
  • Sensor control output during start
  • Temporary Stop Feature
  • Factory Alarm Disarm and Rearm signal output
  • Programmable factory keyless door locking before and after start
  • Programmable start status output with shock sensor bypass
  • 45 second door / dome light bypass after ignition is turned off.
  • Programmable Ignition 2 (on / off)
  • Programmable 3 hour timer start
  • Programmable 1 / 3 hour timer start
  • Selectable Run Timer (5/10/20/30 minutes)
  • Ignition control by-pass during remote start
  • Selectable Gasoline / diesel
  • Selectable Diesel warm-up time
  • Programmable Ignition control locks bypass (on / off)



Posted in: Autopage , Car Electronics , Car Security  Tags:
