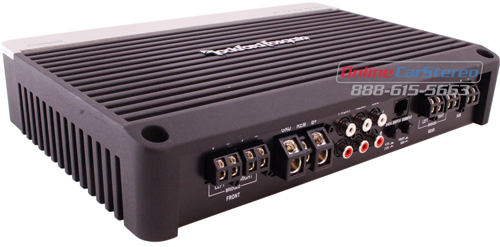

The Punch P1000X5D is an ultra-efficient 5-channel amplifier capable of
running your entire system without excessive drain on your charging
system. The P1000X5D is perfect for running a front/rear system and a
dedicated subwoofer.
The P1000X5D 1,000 Watt full-range 5-channel is the one-and-only
amplifier you will need to run your entire system. Run dash speakers
off the front channels, run back speakers off the rear channels and run
subwoofer(s) off the 5th channel! Known world-wide for brute power,
this Class-D design offers a higher level of efficiency along with a
tri-stage protection that covers thermal, over-current and short
circuits.
Power Handling:
- 75W RMS x 4 @ 4 Ohms + 200W RMS x 1 @ 4 Ohms
- 125W RMS x 4 @ 2 Ohms + 500W RMS x 1 @ 2 Ohms
- 250W RMS x 2 [Bridged] @ 4 Ohms + 500W RMS x 1 @ 2 Ohms
General Features:
- 0°/180° Phase Switch
- Top mounted controls
- 12dB/octave crossover
- 2/4 channel switch
- 4 Gauge power/ground terminals
- Cast aluminum heatsink
- Infrasonic filter
- MOSFET output stage
- MOSFET power supply
- Top Mounted LED Indicators
